Description

Features :-

• Advance design and technology, the recorder can work stably, dependable and durably.
• Capability of anti-jamming and aseismatic.
• Small volume with OLED screen, the resolution is 160×128.
• Waveform preview, record review, and event marketing.
• An accurate record of the start time of the data sampled owing to the real-time clock of itself.
• Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TFcard to storage the data.
• The maximum capability can be 2gb, so the original data can be saved perfectly by no compression.
• the average review time of a single case can be less than 40 seconds by using an interface of USB 2.0.
• Record waveform details inexten so by the design of high precision sampling frequency.
• Record the state of pacemaker exactly by the higher sampling frequency.
• International standard of 12 leads, record 24-hour Drug with the same standard of the ECG.

Recorder Features :-

• Capacity:-2 GB
• Sampling accuracy:- 12 Bit
• Interface:-USB 2.0
• Record Time:- 24 hours

Technical Specifications :-

• Number of channels: 12 channels;
• Power: 2 AA size batteries;
• Scale voltage: 1mV± 5%;
• Standard Sensitivity: 10mm/mV± 5%;
• Noise level: ≤ 30μ V;
• CMRR: ≥ 60dB;
• Time constant≥ 3.2s;
• Scan speed: 25mm/s± 5%;
• Least measure signal: 50 µ V p-p;
• Product safety type: Type B (Internally powered)

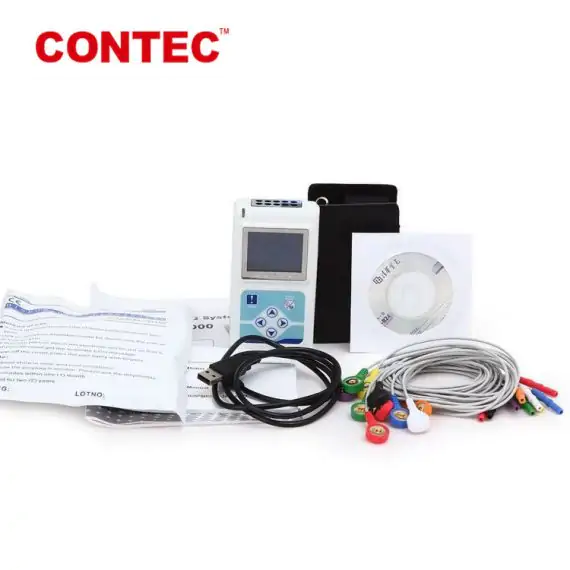

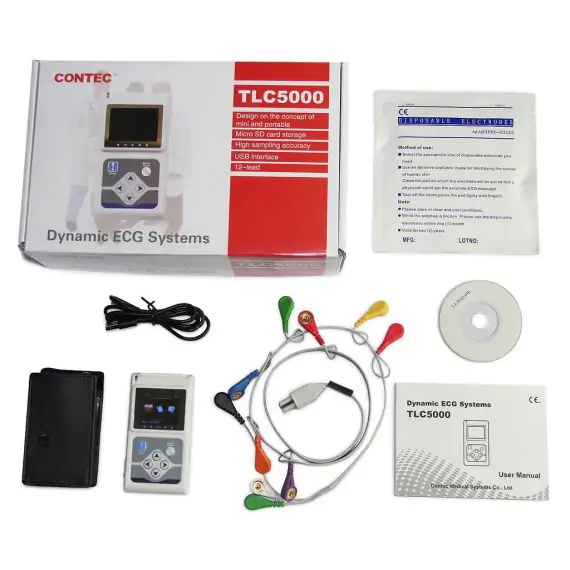

Box Contents :-

• 12-lead ECG lead wires (1 set)
• ECG electrode 1 bag(20 per bag)
• USB data line(1)
• Disk(1)
• Bag(1)
• User manual(1)
