Description

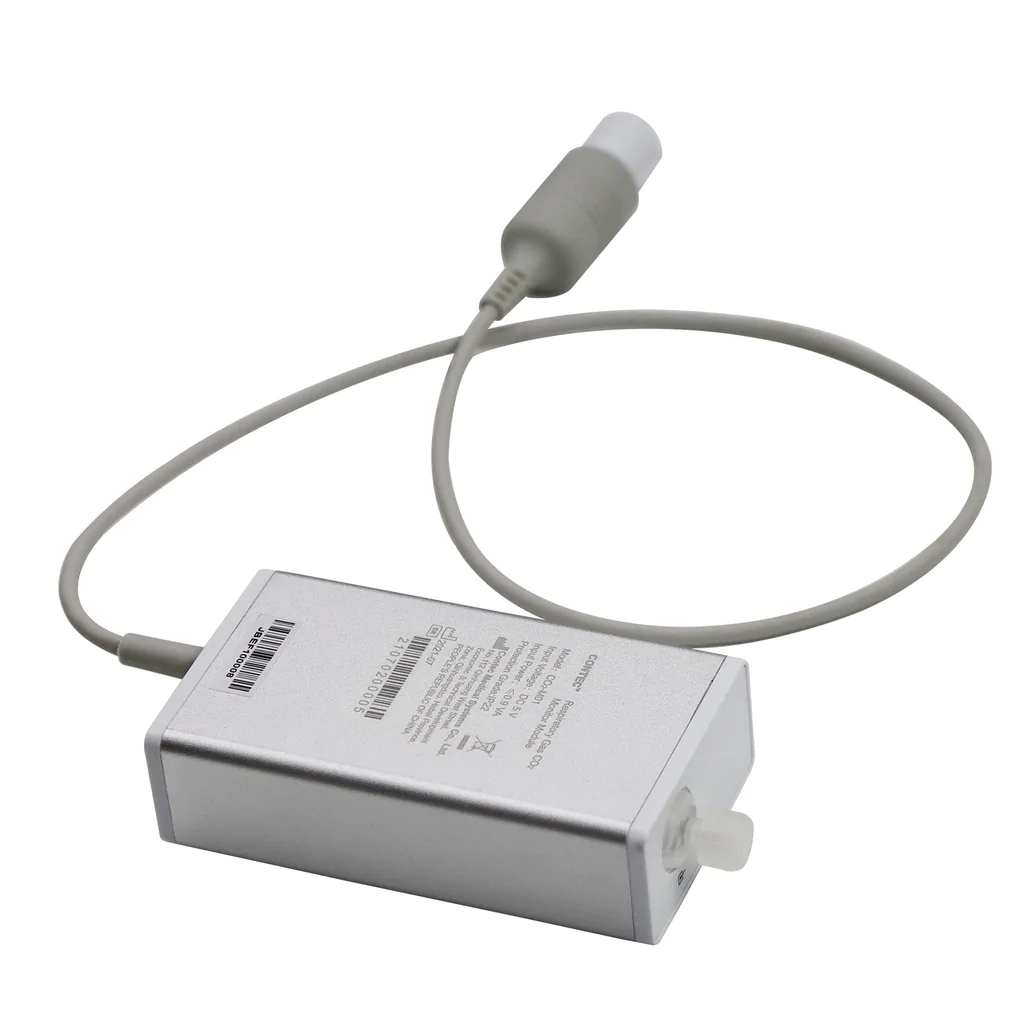

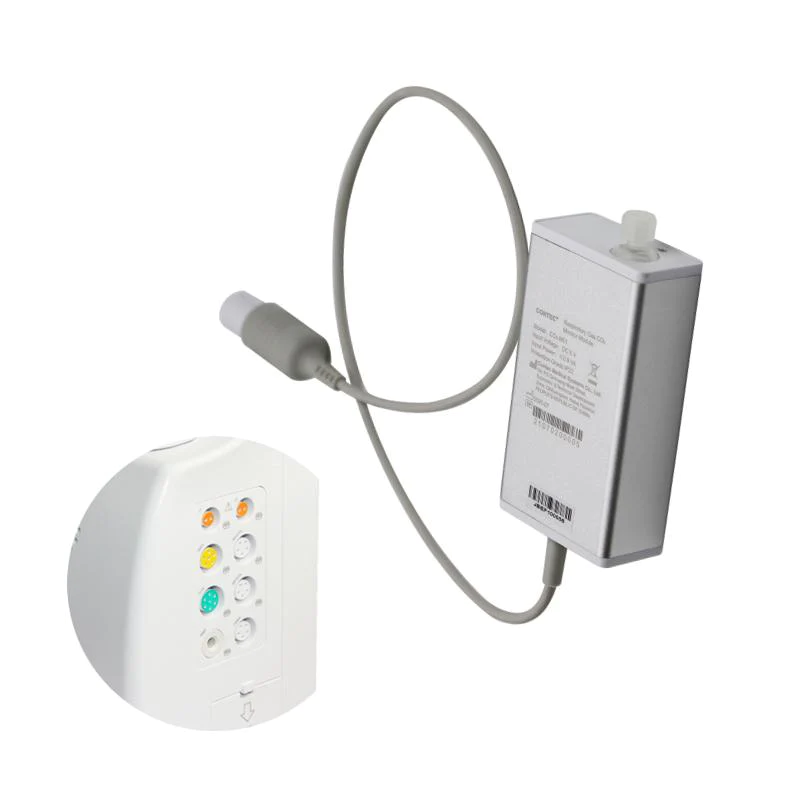

CONTEC Side Stream ETCO2 CO2 Respiratory Module for Contec patient monitors

• Continuously measure CO2 concentration in gas, and calculate End-tidal CO2(EtCO2),Inspired Minimum CO2(InsCO2 ), AirWayRespiration Rate(AwRR).
• Elegant in appearance, and clear in labelling.
• Simple operation, safe and effective, which meets the requirements of relative standards.

Features & Specifications :-

Method: Sidestream or Mainstream
Measuring Range: 0～150mmHg
Resolution:
0～69 mmHg, 0.1 mmHg
70～150 mmHg, 0.25 mmHg
Accuracy:
0～40 mm Hg ±2 mm Hg
41～70 mm Hg ±5%
71～100 mm Hg ±8%
101～150 mm Hg ±10%
AwRR Range: 2～150 rpm
AwRR Accuracy: ±1BPM

In The Box :-

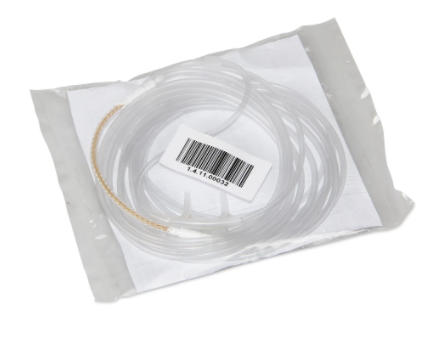

• 1 Set of ETCO2 module with Nasal Cannula
