Description

Specifications :-

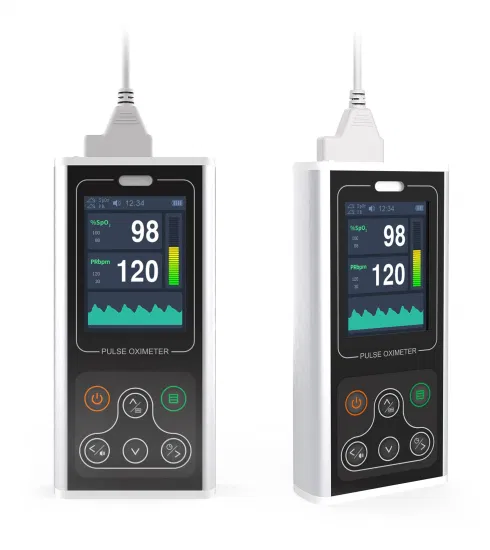

• The CMS60D1 Pulse Oximeter utilizes advanced photoelectric oxyhemoglobin inspection and capacity pulse scanning technology to measure oxygen saturation and pulse rate through the finger.
• It is intended for use in diverse environments, such as homes, hospitals, oxygen bars, and community healthcare, and is suitable for monitoring before or after exercise (but not during).
• The device features a comprehensive display that shows SpO2 values, pulse rate, and waveform, along with a bilingual interface and multiple functional options.

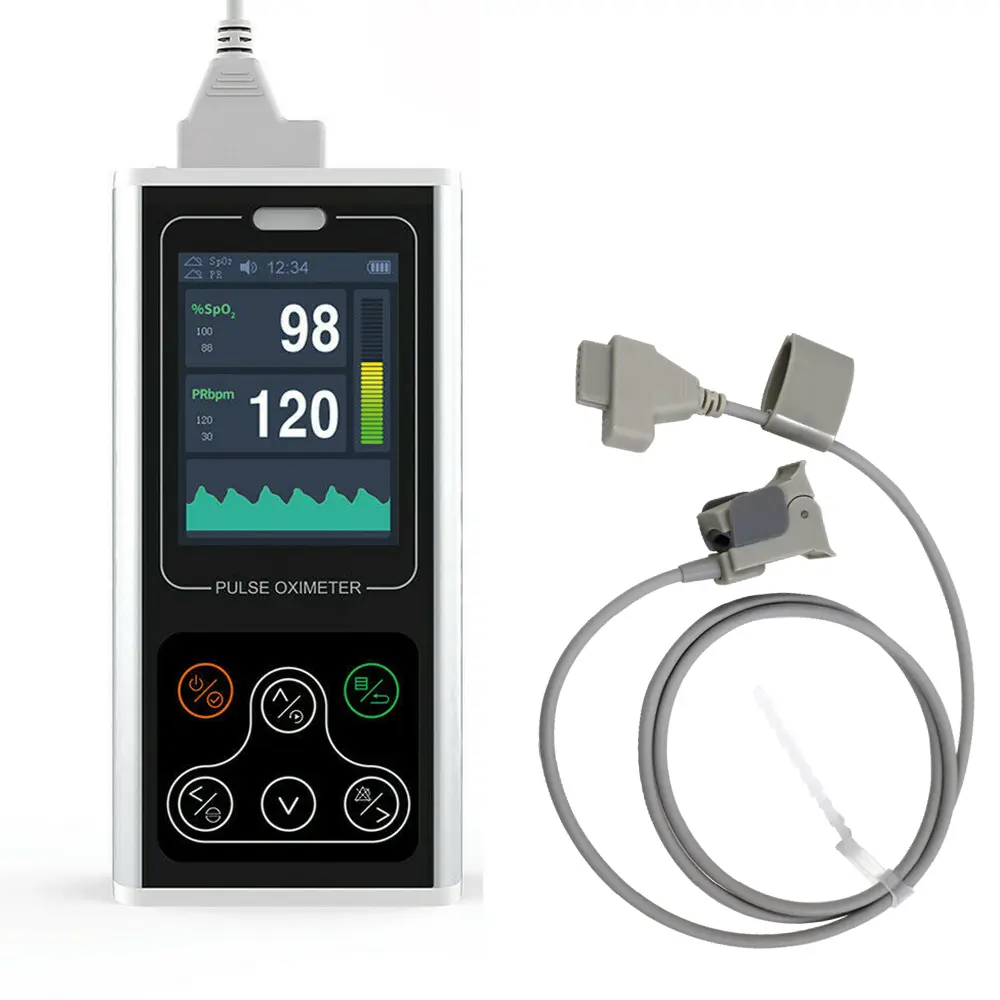

• It also allows for data storage and PC uploads, offers adjustable settings and alarm functions, and can connect to an external SpO2 probe.

Technical Specifications :-

• Display: 2.8″ color screen
• Resolution: 240 x 320 pixels
• SpO2 Measurement Range: 0% to 100% (1% resolution)
  • Accuracy:
    • 70% to 100%: ±2%
    • 0% to 69%: unspecified
• Pulse Rate Measurement Range: 30 bpm to 250 bpm (1 bpm resolution)
  • Accuracy:
    • 30 bpm to 99 bpm: ±2 bpm
    • 100 bpm to 250 bpm: ±2%
• Perfusion Index Measurement Range: 0% to 20%
  • Accuracy:
    • 1% to 20%: ±1%
    • 0% to 0.9%: ±0.2%
• Low Perfusion Accuracy:
  • Low perfusion at 0.4%:
    • SpO2 accuracy: ±4%
    • Pulse rate accuracy:
      • 30 bpm to 99 bpm: ±2 bpm
      • 100 bpm to 250 bpm: ±2%
• Light Interference: Deviation compared to normal conditions: ≤ ±1%
• Power Consumption: ≤ 0.84 V·A
• Operating Voltage: DC 3.3V to 4.2V
• Battery: Rechargeable built-in lithium battery; maintains functionality after power loss.
• Battery Life: Designed for a minimum of 500 charge-discharge cycles.
• Safety Classification: Class II, type BF applied part.
