All New CMS5100 Patient Monitor adopts Oculometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning & Recording Technology for SpO2 measuring. Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family.

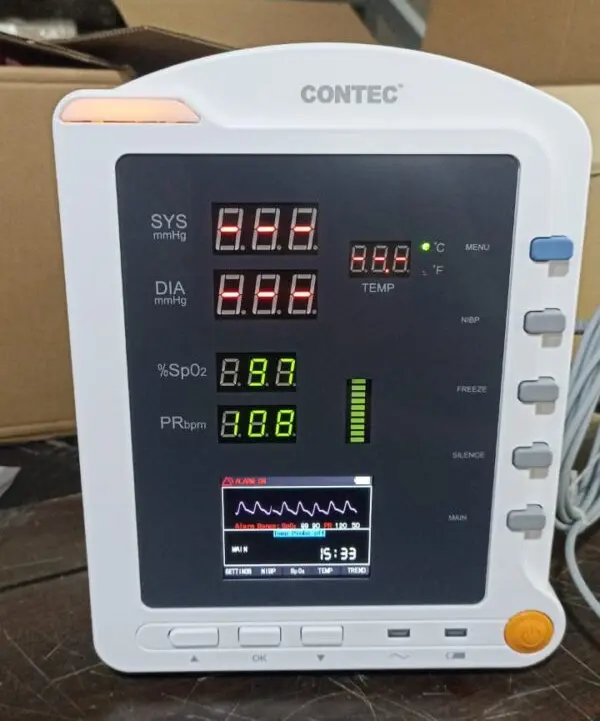

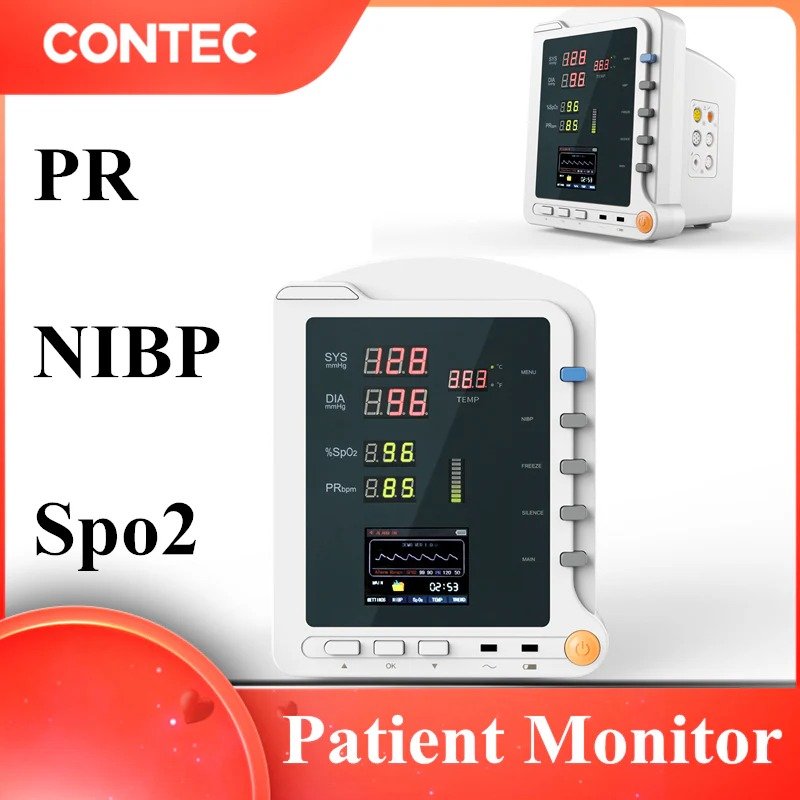

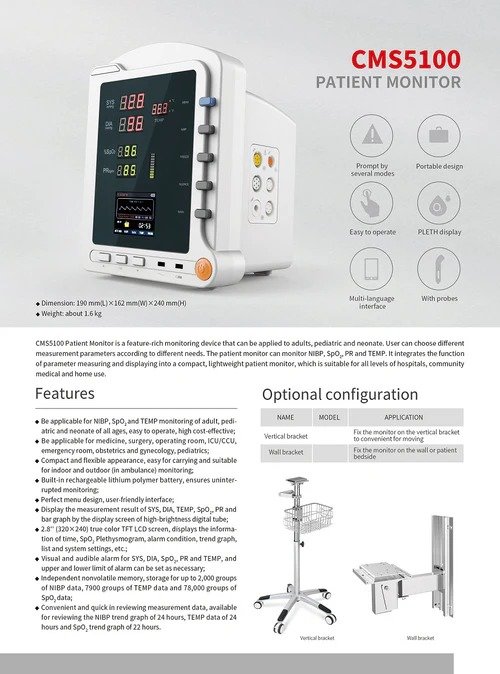

CMS5100 Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning & Recording Technology for SpO2 measuring. Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient operation, which is applicable for hospitals, community medical treatment and family. Its a new model launched in 2021.
Built-in rechargeable Li-polymer battery for uninterrupted monitoring.
Unique Flash memory, storage for up to 2000 NIBP data and 78000 SpO2 data.
User-friendly interface with 2.8” (320×240) color TFT LCD and red and yellow highlight LED.
Be applicable for adult, pediatric and neonatal for all-round monitoring, easy operation and high cost performance.
Be applicable for medicine, surgery, operating room, ICU/CCU, emergency room, obstetrics and gynecology, pediatrics.
Compact and flexible appearance, easy for carrying and be suitable for indoor and outdoor(in ambulance) monitoring.
Convenient and quick in inquiring measurement data, review for NIBP trend graph within 24-hour and SpO2 and Pulse rate(PR) trend graph within 20-hour.
Visual and audible alarm for Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), SpO2 and Pulse rate(PR), and upper and lower limit of alarm can be set.
Product Specifications
NIBP :-
Method: Oscillometry
Mode: Manual/Auto/Continuous
Measurement Range: 25-260mmHg
Resolution: 1mmHg
NIBP Accuracy: ±5mmHg
Alarm: SYS/DIA/MAP
SpO2 :-
Measurement range: 0%-100%
Resolution: 1%
Accuracy: ±2% (70%-100%) 0%-69% unspecified.
Alarm range: 0-100%
Pulse Rate :-
Measurement range: 10 – 270
Resolution: 1bpm
Accuracy: ±2pm or ±2%
Temperature :-
Can measure temperature of adults, pediatric and neonatal patients.
Other Specifications :-
Dimension (LxWxH): 191 x 160 x 244 (mm)
Net Weight: 1.5 kg

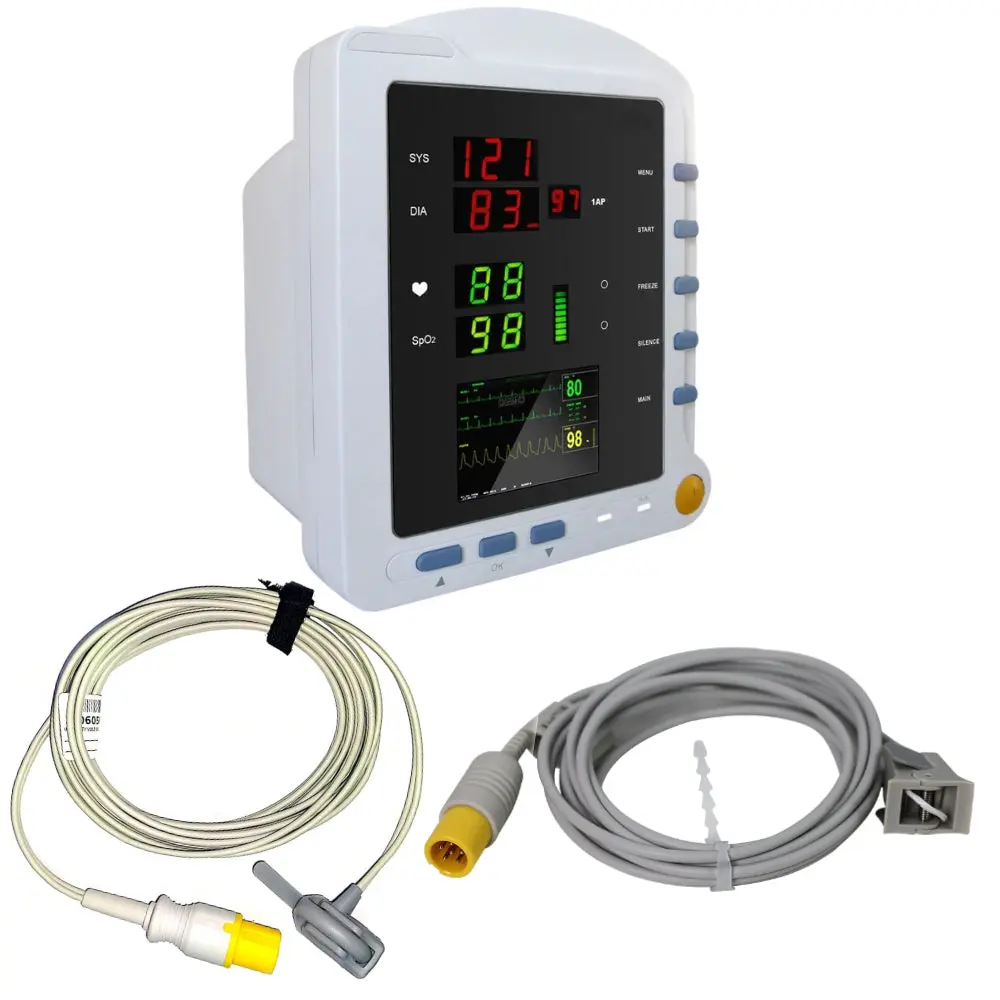

In The Box :-
Monitor
Power connector and adaptor
Adult/Neonatal cuff + cable (based on selection)
SpO2 probe
Temperature probe
User manual
Comparative Chart of Contec Patient Monitors :-
Monitors
CMS-5100
CMS-6000
CMS-7000 PLUS
CMS-8000
AQUA-12
AQUA-15
NIBP
x
x
x
x
x
x
SpO2
x
x
x
x
x
x
Pulse Rate
x
x
x
x
x
x
Respiratory
x
x
x
x
x
Temperature
x
x
x
x
x
x
ECG
x
x
x
x
x
Probes :
Adult
Standard
Standard
Standard
Standard
Standard
Standard
Neonatal
Optional
Optional
Optional
Optional
Optional
Optional
Display
2.8” TFT LCD & LED
8” TFT LCD & LED
12.1 TFT LCD Touch Screen
12.1 TFT LCD
12.1” TFT LCD Optional: Touch Screen
15” TFT LCD Optional: Touch Screen
ECG Waveform Display
7 channel
7 channel with ECG step function
7 channel with cascade ECG waveform
5 channel
8 channel
ECG Input
RA; LA; RL; LL; V
I; II; III; avR; avL; avF; Vx; CAL
I; II; III; avR; avL; avF; Vx; CAL
RA; LA; RL; LL; V
RA; LA; RL; LL; V
Memory Type
Built-in Flash Memory
Built-in Flash Memory
Built-in Flash Memory
Built-in Flash Memory
Built-in Flash Memory
Built-in Flash Memory
Storage Capacity
Up to 2000 NIBP data and 78000 SpO2 data
Up to 4800-group NIBP data.
Up to 4800-group NIBP data.
Up to 4800-group NIBP data.
Up to 400 groups of NIBP list, 6000 secs of ECG & 60 alarms
Up to 400 groups of NIBP list, 6000 secs of ECG & 60 alarms
Data Connectivity (optional)
Connect to Central Monitoring System by 3G, WiFi or wired mode.
Connect to Central Monitoring System by 3G, WiFi or wired mode
Connect to Central Monitoring System by 3G, WiFi or wired mode
Connect to central monitoring system by Wire / Wireless
Connect to central monitoring system by Wire / Wireless
