Description
Specification:-
Electrothermal Bipolar Vessel Sealing (EBVS) is an electrosurgery technology for sealing blood vessels of up to 7mm in diameter
Electro Skin Cautery is used in Electrosurgery
Electrosurgery is done to destroy benign and malignant lesions, to control bleeding, and to cut or excise tissue.

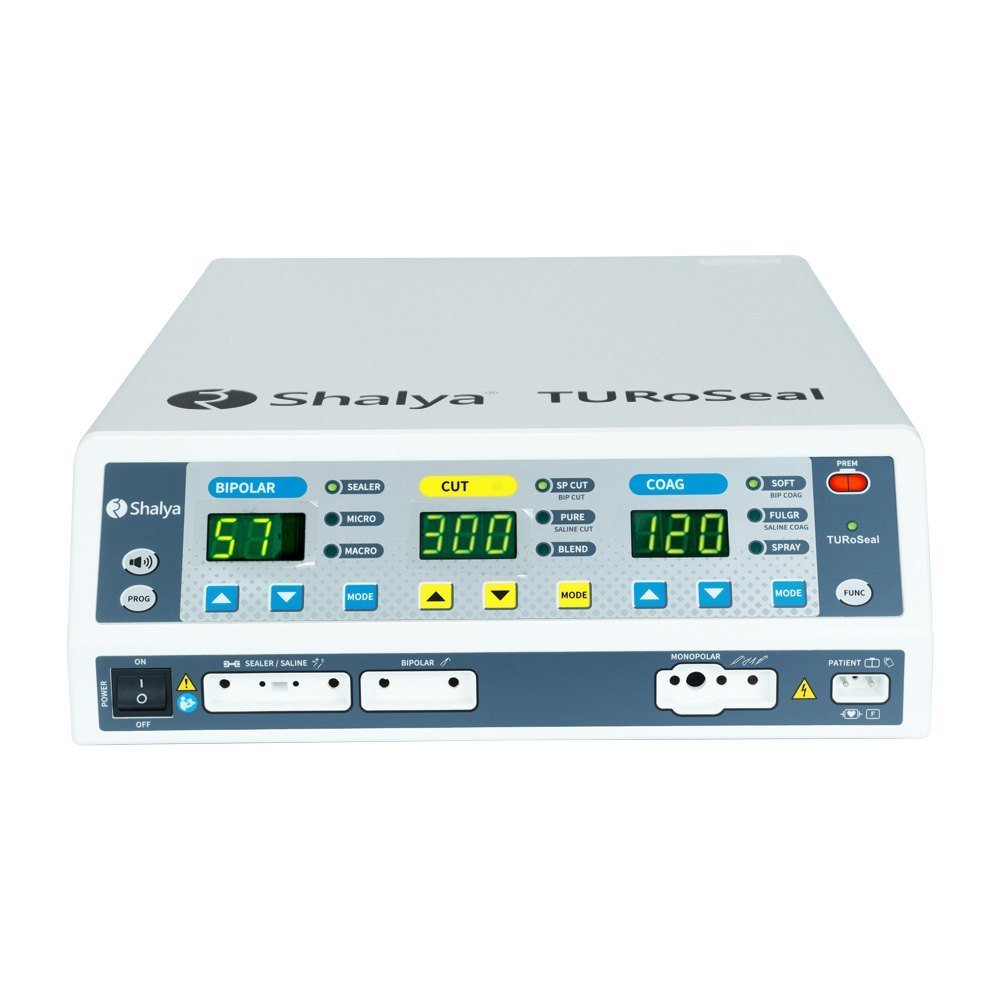

Standard Vessel Sealing Cum Electrosurgical unit.
Graphical LCD Display.
400w Power.
99 programmable.
Patient Plate Conductivity monitoring system.
99 Programs Memory
Display : Graphical LCD Display
Dimension (W x H x D) : 360mm x 145 mm x 305 mm
Weight : 4.5 kg
Input Supply Voltage : 230 VAC + 15%@ 50/60Hz (110 V optional)
Monopolar Modes:-
Cut :-
Mode       Max Power      Operating Frequency
Pure Cut       400 W              480 khz
Blend 1Â Â Â Â Â Â Â Â 250 WÂ Â Â Â Â Â Â Â Â Â Â Â Â Â 480 khz
Blend 2Â Â Â Â Â Â Â Â 200 WÂ Â Â Â Â Â Â Â Â Â Â Â Â Â 480 khz
Endocut       99 %               480 khz
Coag :-
Mode       Max Power      Operating Frequency
Spray         120 W              480 khz
Fulgurate      150 W              480 khz
Essicate      150 W              480 khz
Bipolar :-
Mode       Max Power      Operating Frequency
Bi-Coag       120 W              480 khz
Bi-Cut         120 W              480 khz
Sealer Mode :-
Mode       Max Power      Operating Frequency
Seal          150 W              480 khz
Standard accessories with the unit:-
- Surgical Monopolar active handle valley lab type. 1nos
- Needle set (electrodes set for above probe) 1nos
- S.S.patient plate (adult) 1nos
- Patient plate cable cord. 1nos
- Hand switch pencil DISPOSABLE.(1time use) 1nos
- Double paddle footswitch. 1nos
- Monopolar active handle cable cord 1nos
- Bipolar forceps . 1nos
- Bipolar forceps cable cord. 1nos
- Open Bi-clamp 1nos
- Bi-clamp cable cord. 1nos
- Laparoscopy bi-clamp (vessel sealer) 1nos
