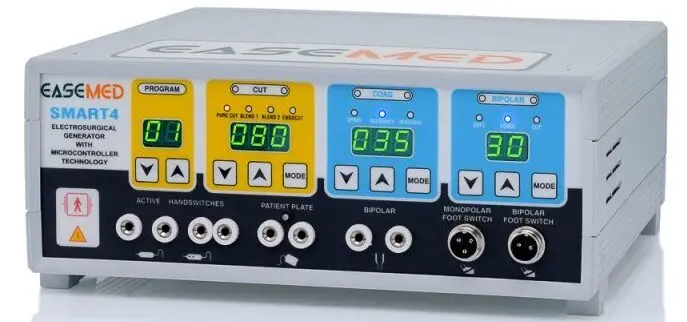

Electro Surgical Unit – SMART 4

29,800.00

We introduce in the medical sector a new microprocessor based Electro Surgical Generator-SMART 4. It excellent performance of monopolar (cut & coag) and bipolar modes. Integrated with microprocessor controls, this ESU provides user safety to the user during surgery and is ideal for surgeries that require high precision and reliability. Spray coagulation is an internal part of this surgical unit that gives a good hemostasis effect with minimum cutting effect.

Description

Features:-
  • Feedback-controlled response system
  • Automatically stops energy delivery as soon as the seal cycle is complete
  • Minimum cutting effect
  • Spray coagulation
  • Pure and smooth cut
  • Bipolar output with a non sparking characteristic
  • Prompt start even in irrigated procedures
  • Provides good hemostasis effect
Applications :-
  • Microsurgery
  • Neurosurgery
  • Laparoscopy
Technical Specifications:-

Cut :

Mode Programs Power Load Operating Frequency
Pure 99 400w 500 Ω 480khz
Blend 1 99 250w 500 Ω 480khz
Blend 2 99 200w 500 Ω 480khz
Blend 3 99 99 % 500 Ω 480khz

Coag :

Mode Programs Power Load Operating Frequency
Spray 99 120 W 500 Ω 480 kHz
Fulgurate 99 150 W 500 Ω 480 kHz
Dessicate 99 150 W 500 Ω 480 kHz

Bipolar :

Mode Programs Power Load Operating Frequency
Soft 99 80 W 100 Ω 480 kHz
Force 99 80 W 100 Ω 480 kHz
Cut 99 100 W 100 Ω 480 kHz

Other Parameters :

Display 7 segment LED
Dimension (wxhxd) 290mmx105mmx260mm
Weight 4kg
Keyboard Feathertouch
Input supply voltage 230vac +15%@50/60hz
