Product Detail

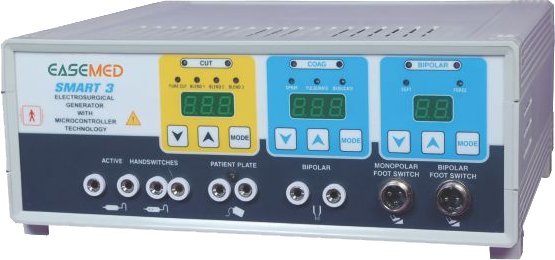

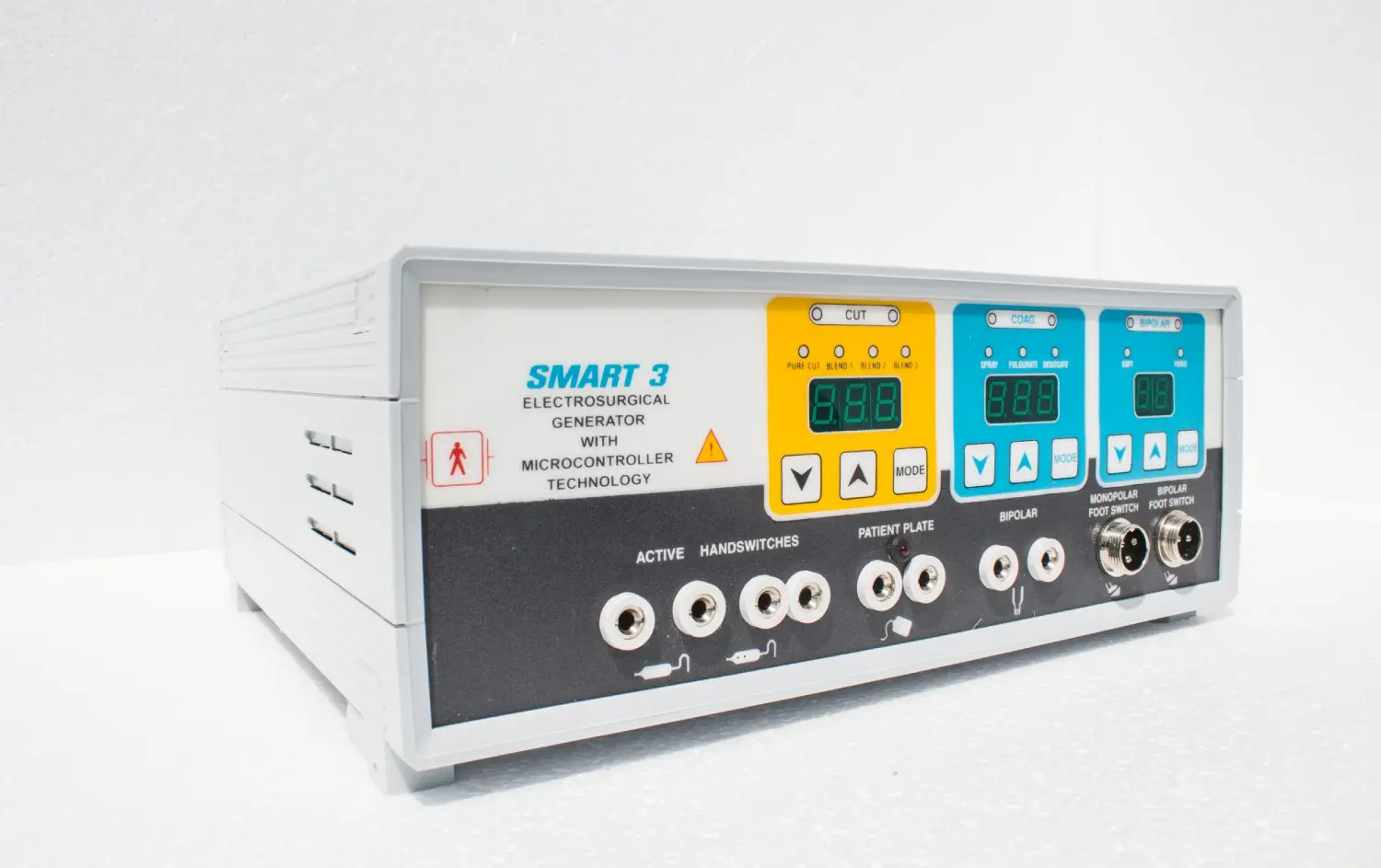

Electro Surgical Unit SMART 3

26,500.00

Electro Surgical Unit-Smart 3 is a new generation electrosurgical unit integrated with microprocessor controls. The equipment ensures complete safety to the surgeon while operating. Combines the excellent performance of monopolar (cut & coag) and bipolar modes, this ESU is specially developed for specific surgeries where high precision and reliability is paramount. There is an added feature in it that is responsible for a good hemostasis effect with minimum cutting effect.

Description

Features:-
  • Automatically stops energy delivery as soon as the seal the cycle is complete
  • Minimum cutting effect
  • Feedback-controlled response system
  • Bipolar output with a nonsparking characteristic
  • Prompt start even in irrigated procedures
  • Spray coagulation
  • Pure and smooth cut
  • Provides good hemostasis effect
Applications :-
  • Microsurgery
  • Neurosurgery
  • Laparoscopy
Technical Specifications:-

Cut :

Mode Programs Power Load Operating Frequency
Pure 99 300w 500 Ω 480khz
Blend 1 99 250w 500 Ω 480khz
Blend 2 99 200w 500 Ω 480khz
Blend 3 99 150w 500 Ω 480khz

Coag :

Mode Programs Power Load Operating Frequency
Spray 99 120 W 500 Ω 480 kHz
Fulgurate 99 150 W 500 Ω 480 kHz
Dessicate 99 150 W 500 Ω 480 kHz

Bipolar :

Mode Programs Power Load Operating Frequency
Soft 99 80w 100 Ω 480khz
Force 99 80w 100 Ω 480khz
